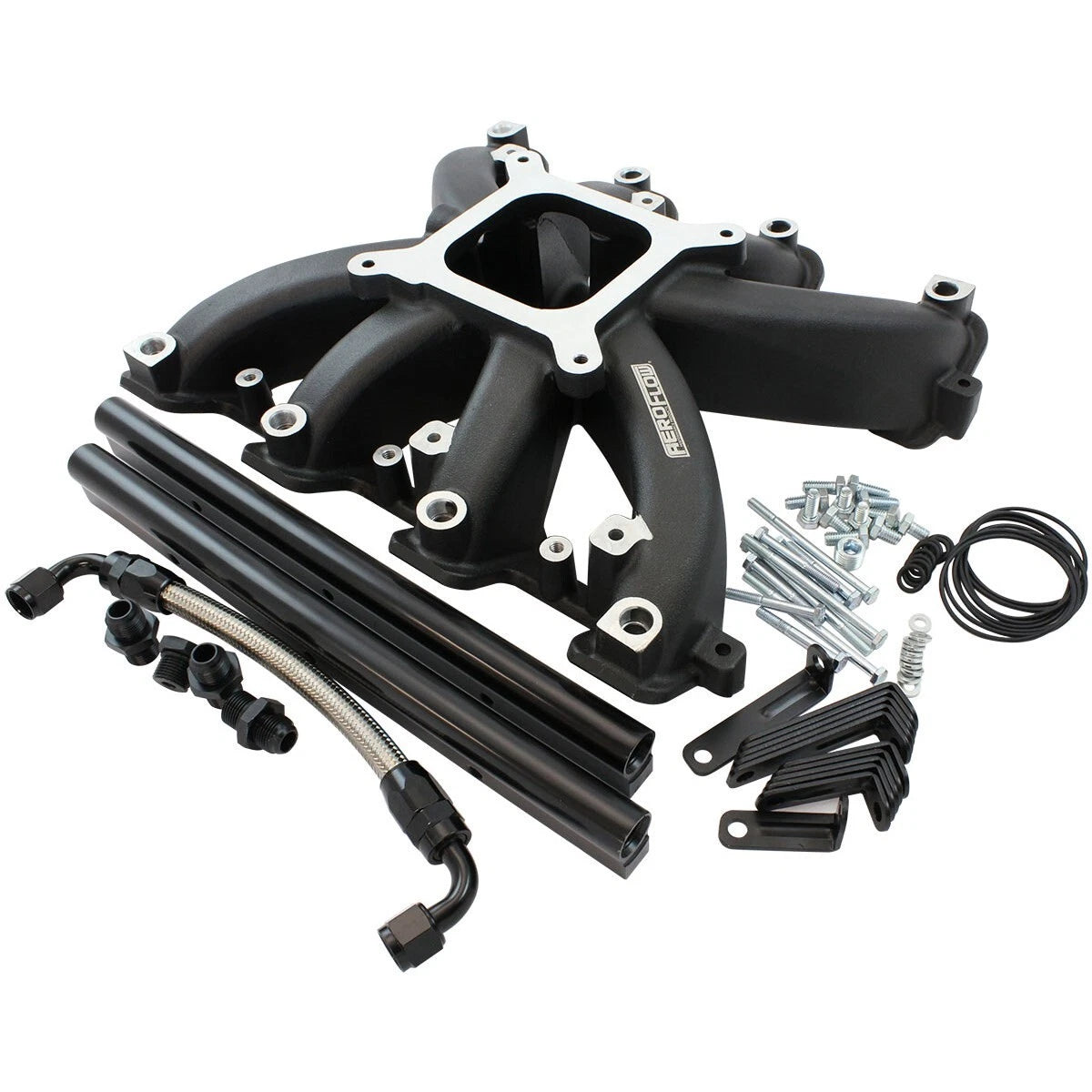

GM LS3 Rectangle Port Carburettor Single Plane EFI Intake Manifold Black
SKU: AF6250-6000
Reliable shipping
Flexible returns
GM LS Rectangle Port Carburettor Street Single Plane EFI
Intake Manifold, Black Finish
4 Barrell 4150 Square Bore Carburettor Pad
• Fits GM LS3 Rectangle Port Engines.
• EFI Applications.
• This is designed for GM LS Engines with EFI only. Use AF6040-6000 for NON-EFI applications.
• This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-6000).
• Requires the use of either 14mm short (33.60mm) fuel injectors or 3/4" length (48.65mm) fuel injectors (SoldSeparately).
• FitsGM LS3 Engines.
• Single Plane Configuration.
• Low Rise Intake Manifold.
• RPM operating range - 2500 to 7000.
Manifold Specifications
- Square bore carburettor pad (4150 Flange)
- Overall height (Carb pad to bottom of manifold) is 122mm (Ensure to Check Bonnet Clearance)
- Port Size: 1.15" x 2.50"
- Intake manifold gasket O-Ring.
-5/16-18" carburettor studs (x4)
- 3/8" NPT port (x1)
- 6 x 5/16-18" Mounting Holes.
Intake Manifold Includes
- 8 x Intake Manifold O-Ring Gaskets (AF6233-5002)
- 4 x M6 x 1.00mm Hex Screws (80mm UHL)
- 6 x M6 x 1.00mm (50m UHL)
- 10 x M6 Flat Washers
- 1 x 3/8" NPT Steel Port Plug
Fuel Rail Kit includes
- 2 x Two Fuel Rails (-8ORB)
- 1 x -8AN cross over 100 series braided line and two 90 degree non full flow taper fittings
- 3 x -8an to -8ORB fittings
- 1 x -8ORB hexport plug
- 6 x long mounting brackets
- 6 x short mounting brackets
- 6 x 5/16-18" hex screws(18.5mm UHL)
- 6 x 5/16-18" hex screws (12mmUHL)
- 4 x M6 nuts
- 8 x 14mm Fuel InjectorO-Rings
Convert your GM LS engine to allow a 4150 style throttle body to sit on top of your engine for retro-fit applications with this Aeroflow Performance Street low rise cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept after market 4150 square-bore throttle bodies or adapter plates for turbocharged applications. Specifically designed to suit GM LS Gen III and IV engines equipped with OE or aftermarket LS3 rectangle port cylinder heads.
