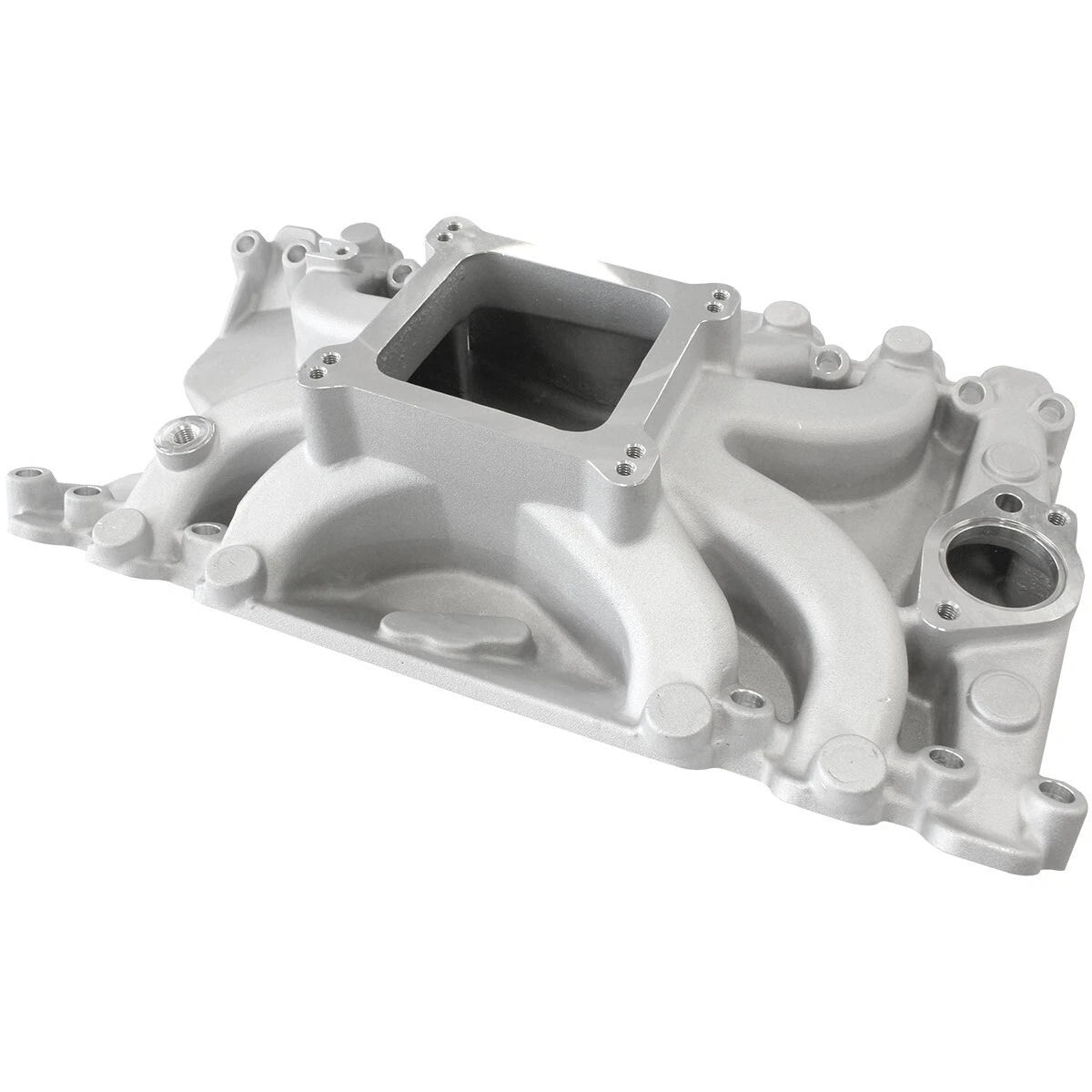

Holden 253-308 Low-Rise Single Plane Intake Manifold
$488.10
SKU: AF6000-4000
Reliable shipping
Flexible returns
Holden 253-308 Low-Rise Single Plane Intake Manifold
Maximize power from your carburetted Holden V8 with a low-rise, single-plane design engineered to deliver a steady, even air and fuel flow from idle to 5500 rpm. The natural cast finish provides durability and a classic look, while the non-EGR configuration keeps the intake simple and efficient.
- Single-plane configuration for improved throttle response and mid-range/top-end power
- RPM operating range: Idle – 5500 rpm
- Natural cast finish
- Carburettor mounting pad: square bore, accepts aftermarket square-bore carburettors with either manual or electric choke options
- Non-EGR design
- Suits Red, Blue and Black Holden V8 cylinder heads
- Fits Holden 253 and 308 V8 engines; will ONLY suit early Holden 308 cylinder heads
- Specifically designed for Holden 304 V8 engines operating from idle to 5500 rpm
- Most cases accept late-model water necks, air conditioning, alternator and HEI ignition systems
- Intake runners should be port-matched to your cylinder heads for optimal performance
- Note: New holes must be drilled out in intake manifold at the correct angle and correct location. These locations are marked on the intake manifold with pilot holes predrilled
