GM LS1 Water Pump & Thermostat Housing Bolt Kit - Black Finish
$55.00
SKU: AF37-1605
Reliable shipping
Flexible returns

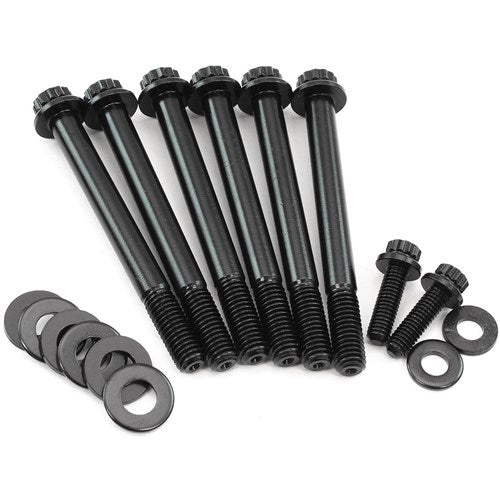

GM LS Water Pump & Thermostat Housing Bolt Kit - Black Finish
12 Point Head and 8740 Grade Material
Kit Contains
2 Short Bolts
Under Head Length - 20mm
Head Diameter - 11.65mm
Thread - M6 x 1.00mm
Spanner Size 8mm
6 Long Bolt
Under Head Length - 80mm
Head Diameter - 15.20mm
Thread - M6 x 1.00mm
Spanner Size 10mm
2 Small Washers
Outside Diameter - 13.65mm
Inside Diameter - 6.50mm
Thickness - 2mm
6 Large Washers
Outside Diameter - 16.85mm
Inside Diameter - 8.30mm
Thickness - 2mm
