BluePrint Engines Ford 347 Stroker Crate Engine Complete 415HP

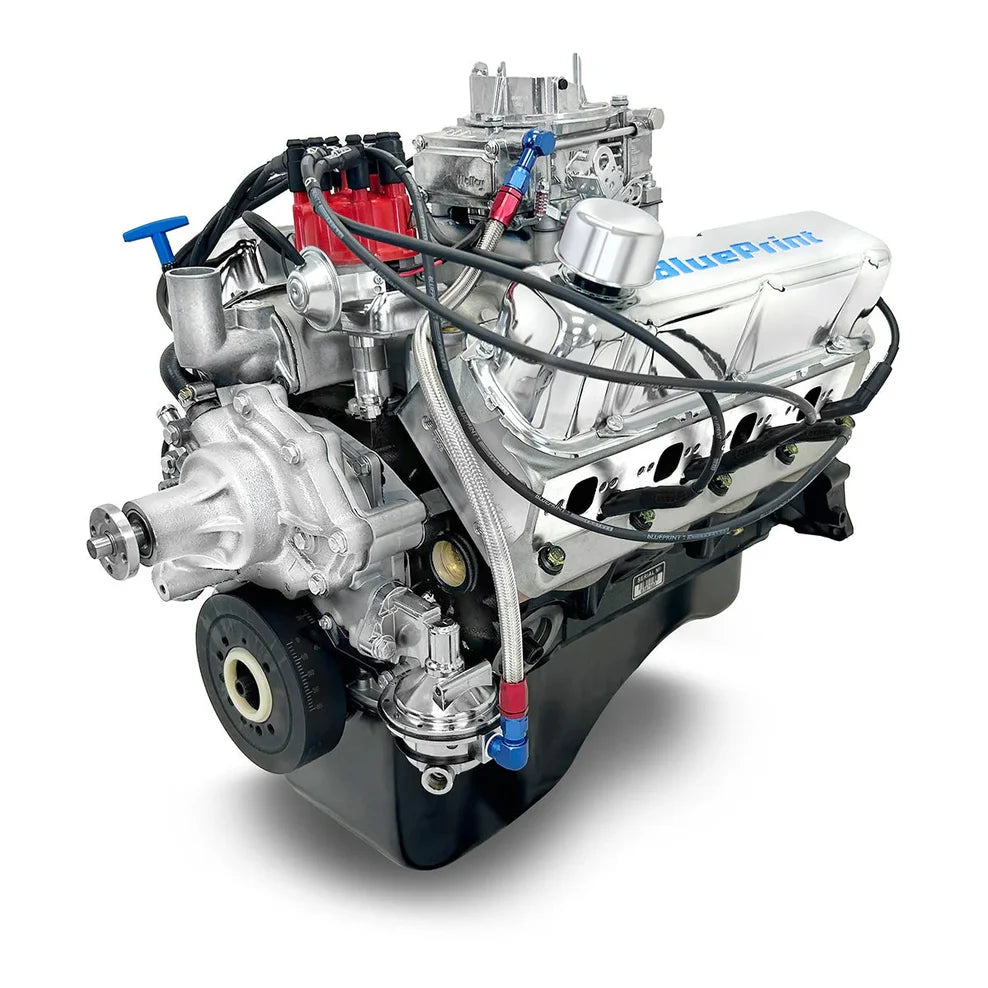

BluePrint Engines Ford 347 Stroker Crate Engine — 415 HP

Turnkey power for serious street performance, this Ford 347 Stroker crate engine from BluePrint delivers 415 horsepower and 415 ft-lbs of torque. Designed to maximize horsepower, torque, and reliability in Ford applications, it combines a robust new iron block with a high-flow aluminum cylinder head setup and a precision rotating assembly for a seamless, ready-to-run powerplant.

Block & Rotating Assembly

• New BluePrint high-strength cast iron block with increased deck thickness and webbing for enhanced rigidity
• Priority main oiling and a 4-bolt main with a 1-piece rear main seal for endurance under load
• Improved water jacket design for efficient cooling during aggressive driving
• Rotating assembly features a 3.400" stroke, forged 5.400" connecting rods, and forged pistons
• 28 oz external balance for smooth operation and compatibility with standard transmissions and balancers

Cylinder Heads & Camshaft

• BluePrint aluminum HP9009 cylinder heads with 60cc combustion chambers
• Valve setup: 2.02" intake / 1.60" exhaust
• Runners: 190cc intake / 60cc exhaust
• Hydraulic roller cam with 0.543" intake and 0.554" exhaust lift
• Duration @.050" — 218° intake / 226° exhaust; 112° lobe separation

Ignition Timing & Fuel Delivery

• Initial timing: 10–16 degrees
• Total timing: 32–34 degrees
• Carburetor and intake are included, supporting a carbureted setup straight from the crate

Included Components

• Front sump oil pan
• Valve covers and timing cover
• Carburetor and intake
• Standard rotation water pump
• Spark plugs and wires
• Distributor, harmonic balancer, thermostat and thermostat housing

Notes

Please contact us prior to purchase for the freight quote.
