Billet 2-Port Fuel Pressure Regulator with -8 ORB Ports Blue Finish. 1-11 psi

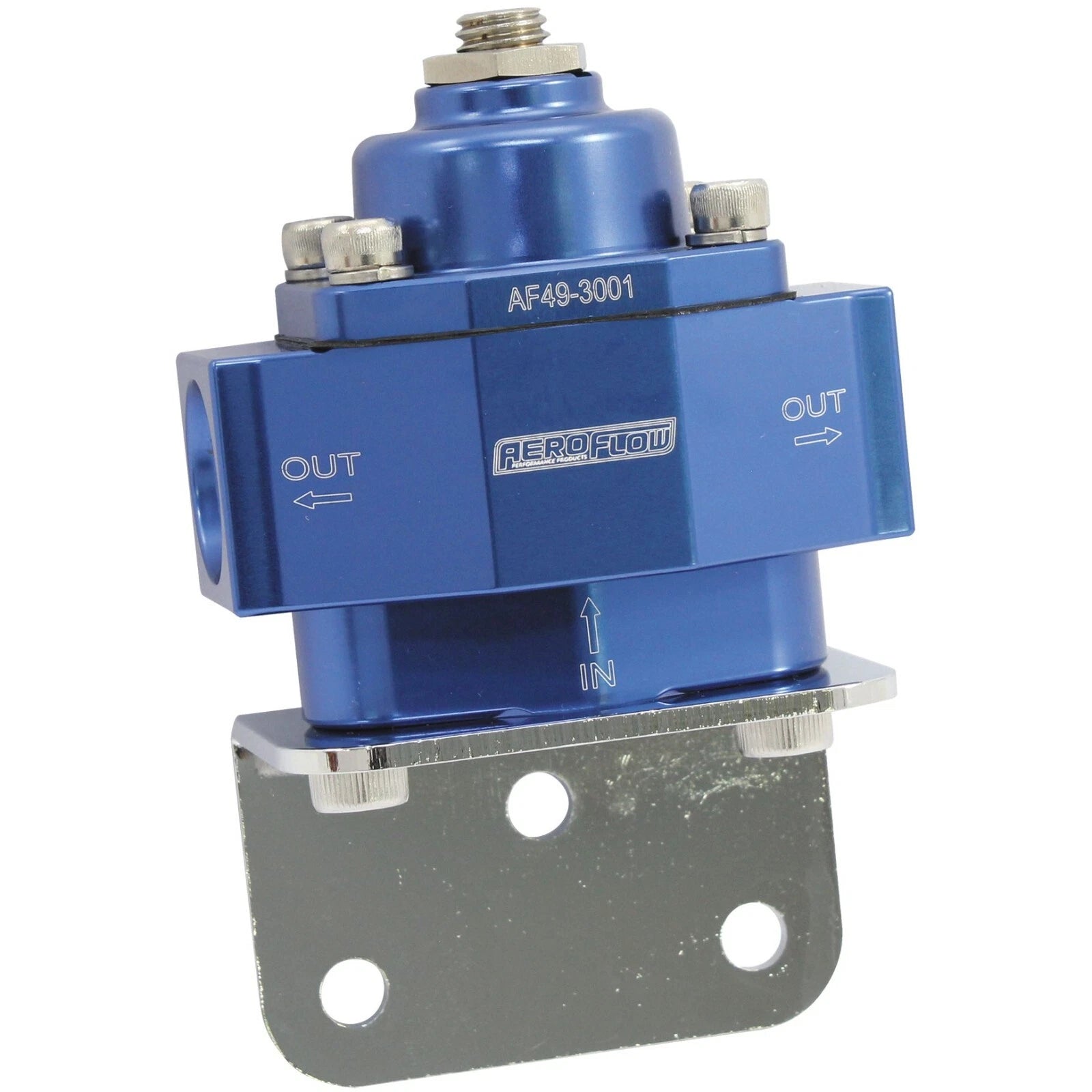

Aeroflow Billet 2-Port Fuel Pressure Regulator

Aeroflow Billet 2-Port Fuel Pressure Regulator with -8 ORB Ports – Blue Finish delivers precise, engine-specific fuel pressure from your pump to the carburetor in a compact billet aluminium package. Designed for dead-head fuel systems (no return line), it maintains steady pressure to protect needle and seat assemblies from flooding and drivability issues.

• Fittings: -8 ORB female ports (also available with 3/8" NPT or -8ORB threads).
• Adjustability: Fully adjustable from 1 to 11 PSI for exact tuning to your carburetor setup.
• Finish: Blue anodised (also available in blue, black, red anodised or polished finishes).
• Dimensions: Overall Length 70 mm; Body Height 59 mm; Bracket Height 42 mm; Overall Width 38 mm; Bracket Centre to Centre 43 mm.
• Fuel compatibility: Suitable for pump fuel, E85 alcohol and diesel fuels.
• Why this regulator fits carburetor-dominated builds: Regulates fuel pressure precisely between the pump and the carburetor, helping prevent over-pressurization that can overwhelm carburetor needle and seat assemblies.
• Construction: Compact billet aluminium construction for durability and a sleek blue finish.
• Applications: A robust upgrade for classic hot rods, street machines, and race-ready cars alike.

Important installation notes: Recommended for carburetor fuel pumps only – not EFI systems. Ideal for dead-head configurations without a return line. Choose from compatible thread options: 3/8" NPT or -8ORB female threads.
