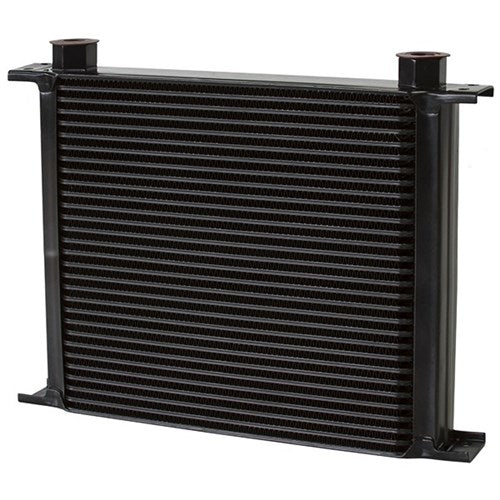

40 Row Universal Oil Cooler 330mm L x 312mm H x 51mm D. -10 Female ORB Threads.

40-Row Universal Oil Cooler

Engineered for demanding cooling tasks, this 40-row universal oil cooler from Aeroflow delivers reliable heat management for engines, transmissions, and hydraulic systems. Its stack plate (modular style) design combines high thermal capacity with a compact footprint to fit a wide range of installations.

Key specifications

• Rows: 40
• Dimensions: Length 330mm × Height 312mm × Depth 51mm
• Connections: -10 Female ORB Threads
• BTU rating: 68,000 BTU/hour
• Max working pressure: 10 Bar (1 MPa / 145 PSI)
• Burst pressure: 25 Bar (2.5 MPa / 362 PSI)

Construction & durability

Fully brazed on all contact surfaces inside and out, with a brazed seam that resists vibrations and pulsations in harsh environments. This rugged assembly is designed to perform under demanding driving conditions and high-load events.

What it cools & how it helps

The 40-row configuration provides substantial cooling capacity, helping to preserve component efficiency and prolong life by maintaining optimal operating temperatures. Ideal for engines, transmissions, and hydraulic systems, it delivers consistent temperature control even under strenuous use.

Applications & compatibility

Suitable for a wide range of vehicles and equipment, including performance cars, motor homes, tow vehicles, passenger cars, and motorcycles. With -10 Female ORB thread connections, it integrates with standard hose fittings used in many installations.

Why choose this Aeroflow cooler

Part of Aeroflow's extensive line of stack plate coolers, this unit showcases a modular, brazed construction engineered to withstand vibrations and pulsations, ensuring dependable cooling in the toughest environments.
