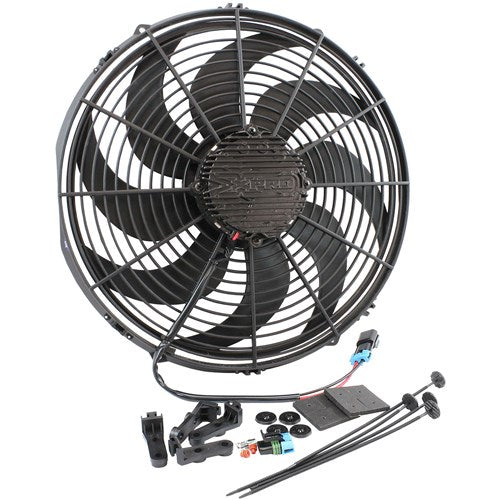

16" Brushless Electric Fan Curved Blade 3300 CFM Non Reversible

Overview

The Aeroflow Performance 16-inch Brushless Electric Fan — Curved Blade Puller delivers serious cooling power in a compact, universal package. Engineered to move heat where it’s needed most, this 16" puller draws air through radiators, condensers, or fluid coolers, delivering 3300 CFM at 12V while pulling only 24A.

Key advantages

• High airflow with low electrical impact: 3300 CFM at 12V, 24 A draw, reducing load on your alternator and battery during peak cooling demands.
• Curved blade design for efficient, directional airflow and robust cooling performance.
• Brushless motor for durable, long-lasting operation and stable performance across temperature ranges.
• Soft-start ramp minimizes electrical noise and prevents voltage spikes when the fan engages, helping maintain system stability.
• Non-reversible puller configuration: air is drawn through the cooling unit, ensuring consistent cooling direction and predictable performance.
• IP66 weatherproof rating for reliable operation in harsh environments, including off-road and exposed installations.
• No specialized controllers required—simply wire to positive (+), negative (-), and a suitable automotive relay; compatible with on/off thermostat controllers (sold separately), but not with variable speed controllers.
• Universal fit with a compact footprint, ideal for automotive condensers, radiators, and various fluid coolers needing high airflow without increasing electrical load.

Specifications at a glance

• Blade diameter: 16" (406 mm)
• Overall dimensions: 16.5" x 15.75" x 3" (419 mm x 400 mm x 80 mm)
• CFM rating: 3300
• Fan style: Puller (air is drawn through the cooling unit)
• Voltage: 12V
• Amp draw: 24 A
• Weatherproof rating: IP66
• Weight: 2.13 kg
• Recommended fuse size: 35 A

Installation & compatibility

Designed for 12-volt systems with straightforward wiring using an automotive relay. Compatible with on/off thermostat controllers (sold separately); not suitable for variable speed controllers. The universal fit and puller configuration simplify upgrading cooling in automotive, performance, and off-road builds.

Ideal applications

• Automotive cooling upgrades for radiators, condensers, and fluid coolers in performance builds and off-road rigs.
• Harsh-environment installations where reliability and IP66-rated protection are important.
• Situations demanding maximum airflow without increasing electrical load on the vehicle’s electrical system.
