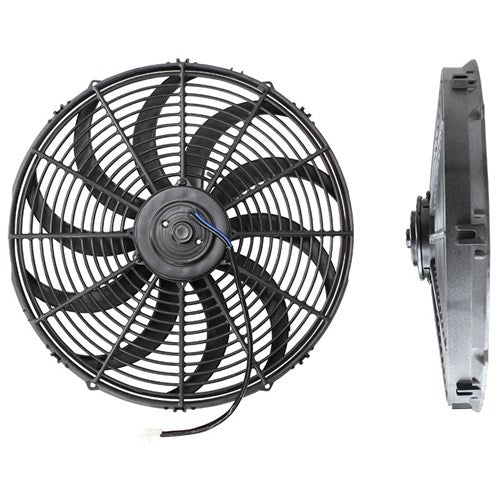

16" Electric Thermo Fan 2000 CFM, Curved Blades, Reversible, 16-21/64" (415mm)

The Aeroflow 16" Electric Thermo Fan delivers robust, continuous airflow for A/C condensers, radiators, or any fluid cooler. With curved blades engineered for efficient air movement, this 12V DC fan moves 2000 CFM and draws 10 Amps at 13.4 Volts. It ships in a ready-to-install pusher configuration and is fully reversible for mounting on either side of your heat exchanger, offering flexible installation in tight engine bays or compact cooling setups.

Key features

• Airflow: 2000 CFM
• Current draw: 10 Amps @ 13.4 Volts
• Blade diameter: 406 mm (16")
• Mounting width: 415 mm (16-21/64" / 415 mm)
• Blade configuration: fully reversible with polarity for push or pull mounting
• 12V DC operation
• Ready-to-install pusher configuration; reversible blade setup for puller mounting

Performance and dimensions

• Blade diameter (tip to tip): 406 mm (16")
• Motor clearance to mounting surface (flat section): 71.8 mm
• Motor clearance to mounting surface (nose section): 82.55 mm
• Mounted width: 415 mm (16-21/64" / 415 mm)

Installation & configuration

The fan ships as a ready-to-install pusher. Its fully reversible blade setup lets you switch to a puller configuration without changing the core hardware. To switch from push to pull, reverse blade orientation. For puller setup, unscrew the 10 mm nut (note: reverse left-hand thread) and turn the blade over, ensuring polarity remains correct: BLUE is Positive, BLACK is Negative.

What’s included and compatibility

• Fan assembly (motor, blade, shroud) and mounting hardware included
• All wiring and controllers sold separately
• Suitable for universal use on A/C condensers, radiators, or any fluid cooler
• Can be used with any fan controller (sold separately)

Why this matters

Consistent, high-volume cooling helps maintain optimal radiator and condenser temperatures, potentially improving cooling performance in hot conditions. The 16" size and curved blade design offer versatile installation across a wide range of cooling needs and engine bays.
