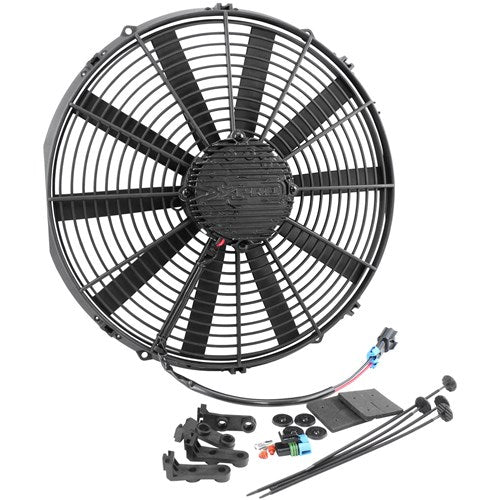

16" Electric Brushless Electric Fan 3400 CFM Rating Non Reversible

High-Flow 16" Brushless 12V Fan for Automotive Cooling

The Aeroflow Performance universal brushless electric fan is a high‑flow cooling solution crafted for 12‑volt systems. Its efficient brushless design delivers more air with less amp draw, making it ideal for compact engine bays, external cooling setups, and a range of radiator or condenser applications.

Why this 16" brushless fan stands out

• 16" (406 mm) blade diameter delivers substantial airflow in a compact package
• 3400 CFM rating to move heat quickly from radiators, condensers, and fluid coolers
• Brushless motor design combines efficiency with cooler operation and longer component life
• Soft start ramp minimizes inrush current to protect electrical systems
• IP66 weatherproof rating ensures reliable performance in harsh conditions
• Puller configuration suited for exposed cooling setups and tight engine bays
• 12V operation with a 24 A draw; recommended fuse of 35 A
• No special controllers required — connect directly to positive and negative through an appropriate automotive relay
• Not compatible with variable speed fan controllers; on/off thermostat control (sold separately) is supported

Applications

• A/C condenser cooling
• Radiator cooling
• Fluid cooler installations in automotive or external cooling setups

Technical specifications

• Blade diameter: 16" (406 mm)
• Fan dimensions: 16.5" × 15.75" × 3" (419 mm × 400 mm × 80 mm)
• Weight: 2.13 kg
• Voltage: 12V
• Amp draw: 24 A
• Recommended fuse: 35 A
• Style: Puller
