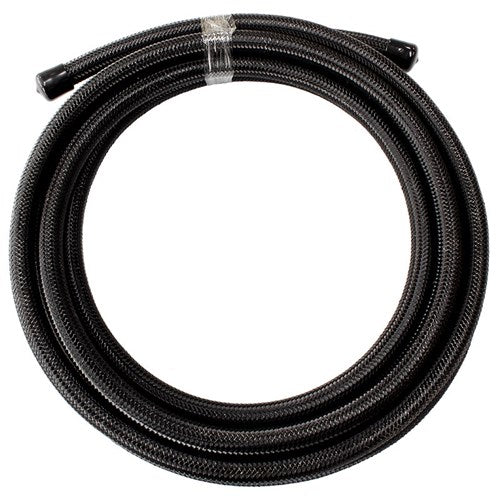

100 Series Black Stainless Steel Braided Hose -6AN 6 Metre Length

The 100 Series Black Stainless Steel Braided Hose —6AN, 6 Metre Length is a true double-braided stainless hose engineered for demanding fluid and fuel systems. It combines a robust stainless steel outer braid with a reinforced CPE liner and a nylon inner braid for exceptional strength, chemical resistance, and reliable performance across a range of fuels and lubricants. The hose is suitable for in-vehicle and equipment use.

Double-braided durability that performs

• Stainless steel outer braid delivers superior abrasion and corrosion resistance in challenging environments.
• Reinforced CPE liner with a nylon inner braid provides dependable chemical compatibility and structural integrity.

Fuel and fluid compatibility

Designed for a broad spectrum of fuels and lubricants, including E85 and E10, methanol, oils, lubricants, coolant systems, and vacuum applications. Temperature range from -40°C to 150°C (-40°F to 302°F) supports versatile in-vehicle and equipment use.

Specifications at a glance

• Length: 6-metre
• End fittings: -6AN, compatible with 100, 150, 500, 550 & 880 series hose ends
• Inner construction: nylon-braided core with reinforced CPE liner

Installation and protection

Inner coil support spring is recommended on tight radius bends and on the inlet/suction side of any pump to protect the hose.

Important cautions and compatibility notes

Note: due to unknown additives in some fuels, rubber hose compatibility cannot be guaranteed for all fuels; for all other fuels, Aeroflow’s PTFE series hose is recommended.

Usage limitations

Not recommended for brake systems, transmissions, power steering, extreme heat areas, or use inside passenger compartments due to permeation.
