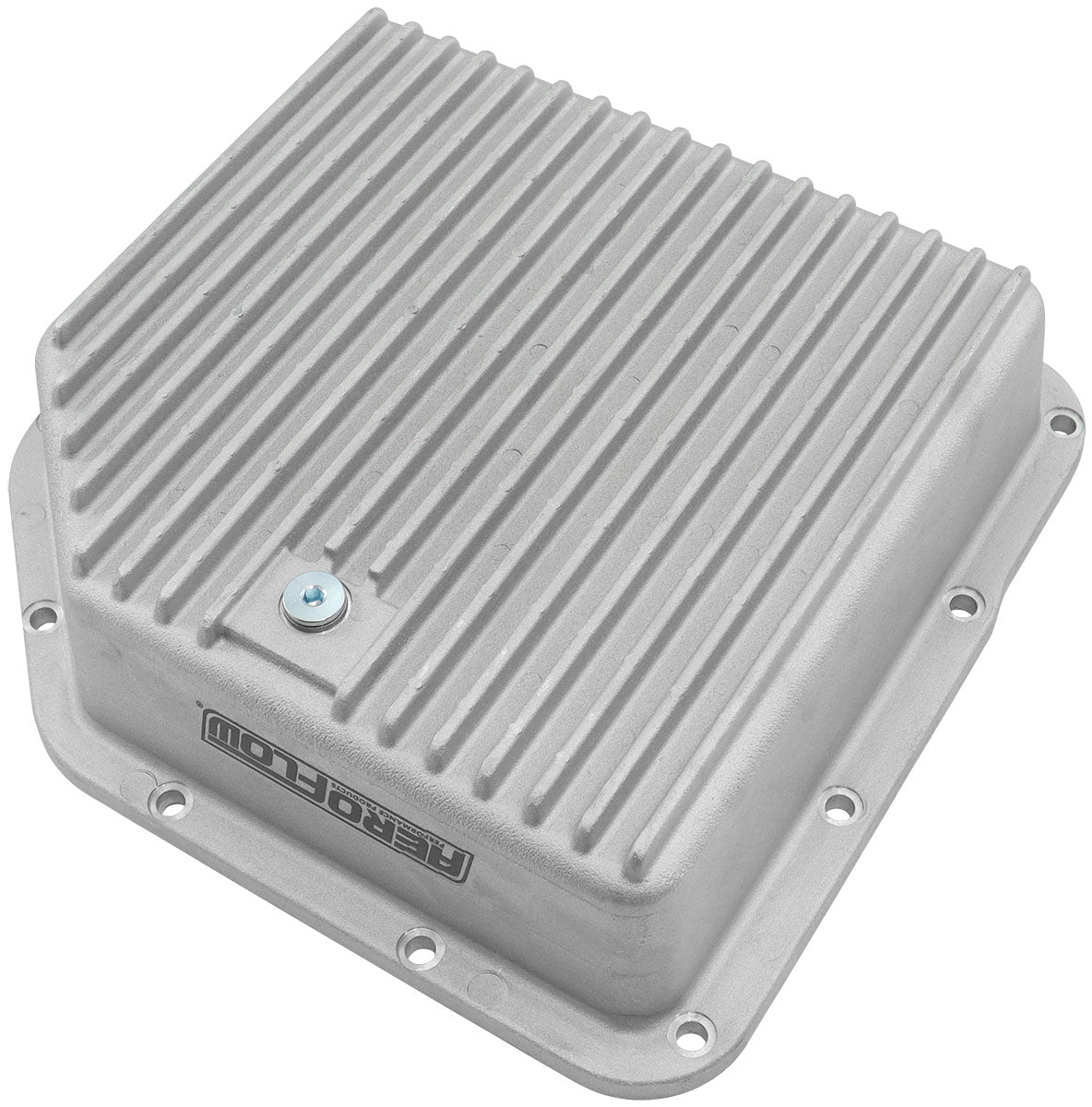

Turbo 350 Cast Transmission Oil Pan Natural Cast Finish Deep Pan
$310.00
SKU: AF72-3103
Reliable shipping
Flexible returns
Cast Transmission Oil Pan
Fits GM TH350, Natural Cast Finish Deep Pan
Aeroflow cast aluminium deep transmission pans help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. The deep pan design increases the fluid capacity for each transmission. The thick internal and external fins add additional strength to reduce transmission case twist and provide greater heat transfer. All cast transmission oil pans feature a drain hole and plug for easy maintenance and includes all mounting hardware and filter extensions where required.
Transmission: GM TH350
Overall Depth: 90mm
Internal Depth: 74mm
1/2-20" Sump Plug
6mm Allen Key Sump Plug
Alloy Filter Block Extension and Accessories Included
5/16-18" (25mm UHL) x 13 6mm Allen Key Socket Cap Screws
1/4-20" (37mm UHL) x 2 Hex Bolts
Overall Depth: 90mm
Internal Depth: 74mm
1/2-20" Sump Plug
6mm Allen Key Sump Plug
Alloy Filter Block Extension and Accessories Included
5/16-18" (25mm UHL) x 13 6mm Allen Key Socket Cap Screws
1/4-20" (37mm UHL) x 2 Hex Bolts
