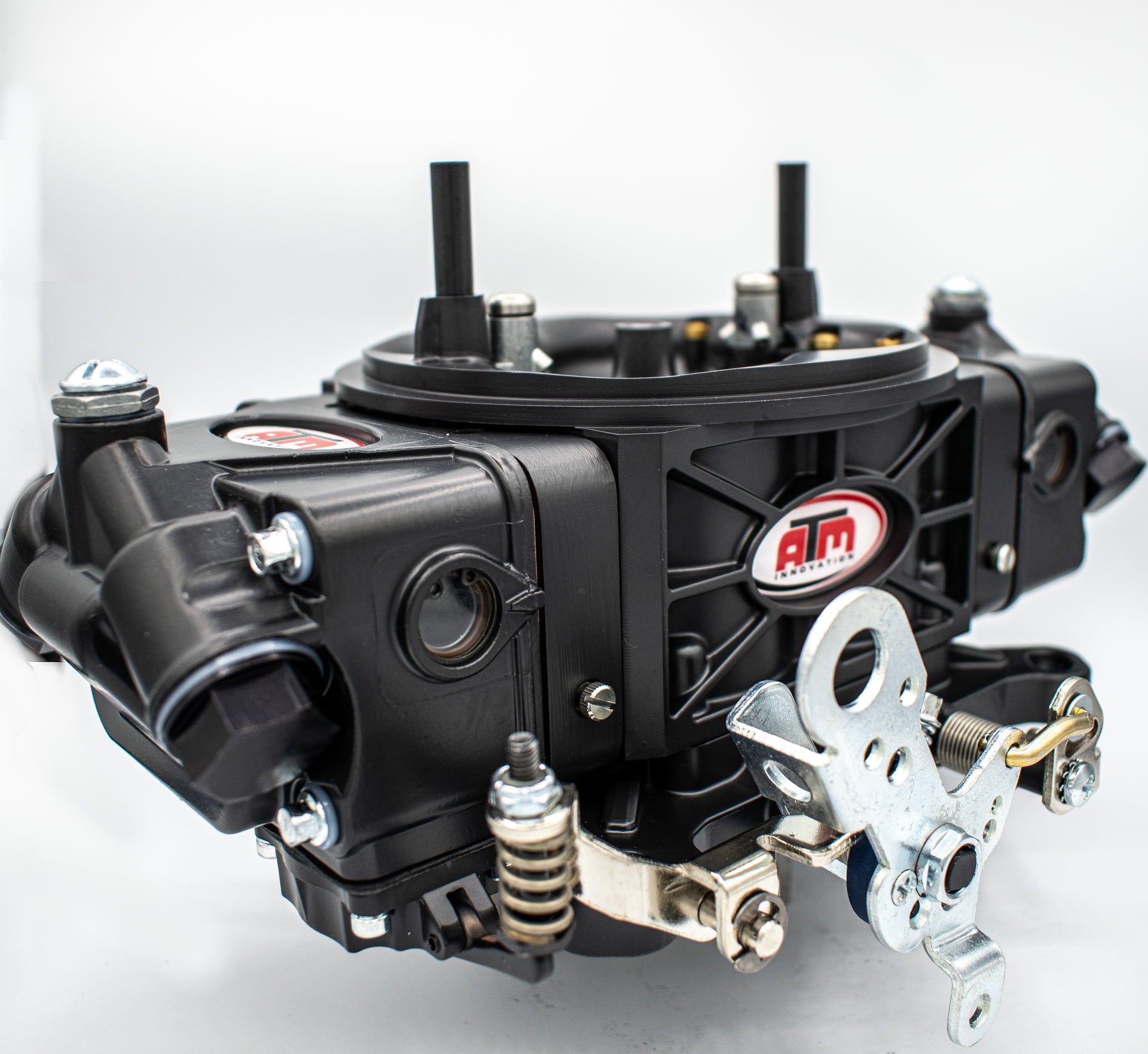

ATM 750HP Double Pumper Street Strip Series Pump Fuel Black Carburetor

Black 750 CFM The Gas XRSC Series is ATM Innovation’s most affordable "street/strip" race carb yet. It has all the features of high-end race carburetors – based on quality ATM™ die cast aluminum main bodies, metering blocks and throttle-bodies. This cost savings over billet components doesn’t hamper performance, and you still get ATM's™ all aluminum dual inlet, dual site-window fuel bowls, changeable idle and high-speed air bleeds and changeable idle feed and power valve channel restrictions providing endless tuning capabilities. The throttle-bodies have vacuum tubes for vacuum advance and PVC hookups. These carburetors are precisely calibrated at the factory and are “race-ready” out of the box requiring minor “trim” adjustments for atmospheric conditions and your individual race combination. They are available in 650, 750, 850, 950 and 1050 CFM sizes for 4150-style flange manifolds.

• 4 Vacuum tubes in throttle body, (2 are 3/8" full vacuum, 2 are 1/4", 1 full, 1 timed)

• 4-corner idle adjustment

• ATM™ die cast aluminum main bodies, metering blocks & throttle bodies

• ATM™ all aluminum dual inlet, dual site window fuel bowls with 7/8”-20 inverted flare inlets

• Changeable idle air & high-speed air bleeds

• Black finish

• Available in 650, 750, 850, 950 and 1050 CFM sizes (4150 Flange)
