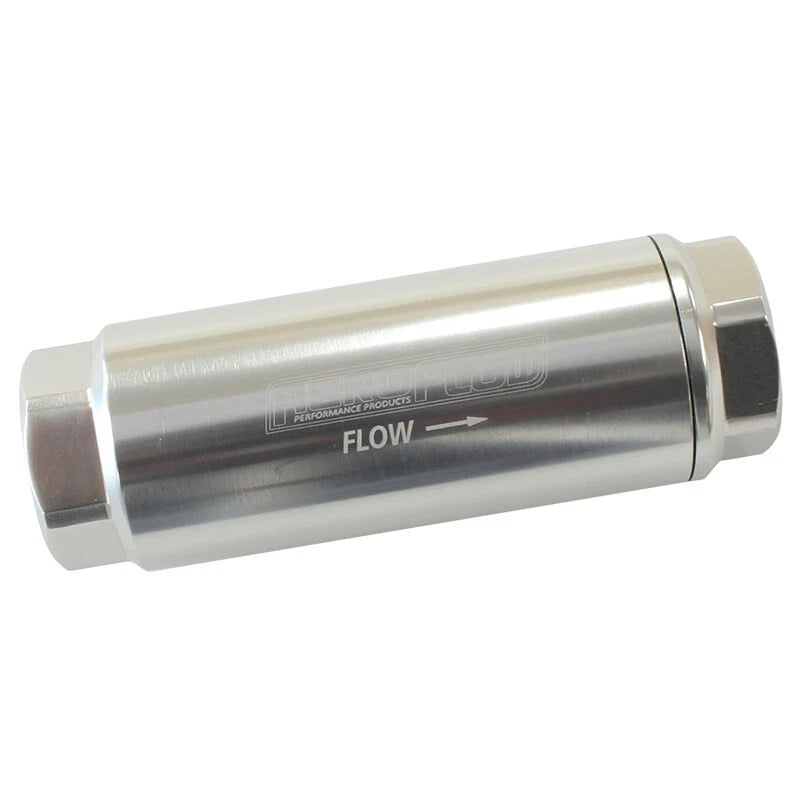

60 Micron Pro Fuel Filter Silver -8AN ORB Inlet/Outlet Ports
SKU: AF66-2042S
Reliable shipping
Flexible returns
Engineered for high-performance fuel systems, the 60 Micron Pro Fuel Filter Silver -8AN ORB Inlet/Outlet Ports delivers precise filtration and robust flow for 200–2700+ HP applications. This 60 micron stainless-steel, reusable and washable filter element makes maintenance straightforward while maintaining top-tier filtration under demanding conditions.
Key features
- 60 micron stainless-steel filter element is reusable and washable for ongoing performance and cost efficiency.
- Inlet/outlet ports: female -8AN ORB threads for secure, compatible connections.
- Construction: CNC-machined 6061-T6 aircraft aluminum body with a durable silver anodized finish.
- Internal magnet catches fine metallic particles for added protection downstream.
- Positive sealing with an O-ring designed for reliability in high-pressure applications.
- Dimensions: 89 mm (3-1/2") length and 31.7 mm (1-1/4") diameter.
- Fuel compatibility: safe to use with all exotic fuels such as E85 and methanol.
- Versatile filtration options: compatible with AF59 series micron options (10, 40, 60, 100) to enable pre-pump and post-pump filtration without impeding flow.
- Installation flexibility: mounting brackets are sold separately; multiple body sizes available to fit space and requirements.
Why this filter stands out
Designed for serious performance, this filter balances aggressive filtration with high-flow capability. The combination of a rugged aluminum housing, precise 60 micron filtration, and a magnet trap means fewer particulates reach the pump and injectors, contributing to consistent fuel delivery and longevity in high-HP engines.
Replacement parts & options
- Replacement Filter Elements: AF59-2062 (60 Micron, Black); AF59-2421 (10 Micron, Red); AF59-2042 (40 Micron, Blue); AF59-2041 (100 Micron, Gold).
- Replacement O-Ring: AF59-2018
- Replacement Filter Element O-Ring: AF59-2040
- Replacement Spring: AF59-2035
Equip your fuel system with a filter that matches performance with reliability. The 60 Micron Pro Fuel Filter Silver -8AN ORB Inlet/Outlet Ports is built to handle high horsepower while offering flexible filtration options and straightforward maintenance.
