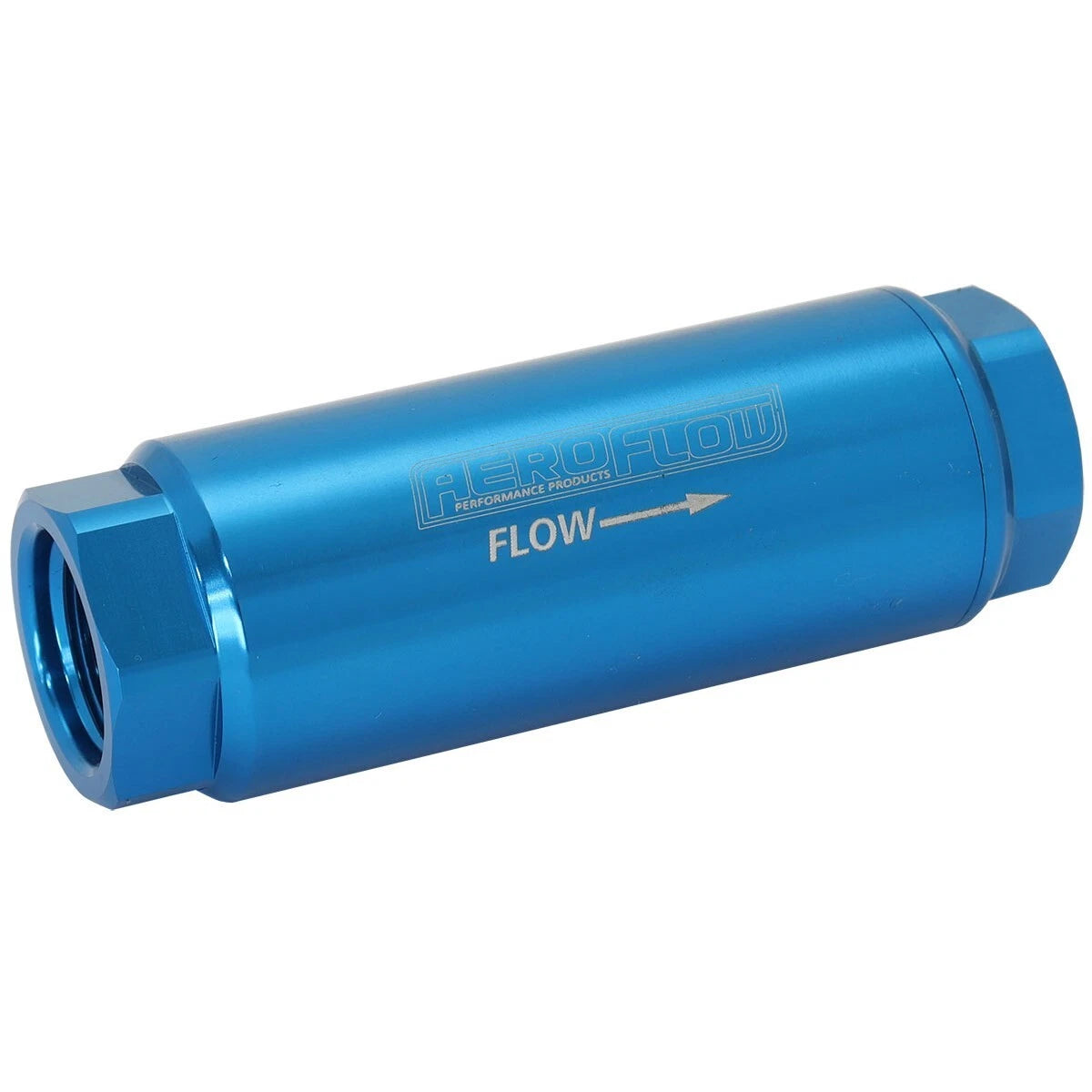

60 Micron Pro Fuel Filter Blue -8AN ORB Inlet/Outlet Ports

Engineered for high-performance fuel systems, Aeroflow’s Pro Filter delivers dependable filtration and strong flow for 200–2700+ HP applications with the distinctive blue Pro series body.

• Blue anodized CNC‑machined 6061‑T6 aluminum body for durability and stylish appearance (black and silver finishes also available).
• Stainless‑steel, reusable and washable filter element designed for easy maintenance and extended service life.
• Built‑in internal magnet to capture fine particulates, adding an extra layer of protection for pumps, injectors, and regulators.
• -8AN/ORB inlet and outlet ports (Female -8ORB), with positive sealing provided by O‑rings for high‑pressure reliability.
• Compatible with a wide range of fuels, including E85 and methanol blends.
• Designed for both pre‑pump and post‑pump filtration to remove contaminants early and maintain strong system flow.

Specifications

• Ports: Female -8ORB (8AN O‑ring Boss)
• Overall length: 89 mm (3-1/2")
• Overall diameter: 31.7 mm (1-1/4")
• Body material and finish: CNC‑machined 6061‑T6 aluminum, blue anodized (also offered in black or silver)
• Internal magnet: Yes
• Filter element material: Stainless steel (reusable and washable)
• Sealing: Positive sealing with O‑rings for high‑pressure applications

Replacement parts and filter elements

• AF59-2421: 10 Micron (Red)
• AF59-2042: 40 Micron (Blue)
• AF59-2062: 60 Micron (Black)
• AF59-2041: 100 Micron (Gold)
• Body O‑Ring: AF59-2018
• Filter Element O‑Ring: AF59-2040
• Replacement Spring: AF59-2035

Mounting and customization

• Mounting brackets are available separately for in‑car or under‑car installations.
• Available in different body sizes to fit space and configuration requirements.

Premium protection for your fuel system without compromising flow, the 60 Micron Pro Fuel Filter Blue with -8AN ORB ports is designed to keep pumps, injectors, and regulators safe from contaminants while maintaining peak performance across high‑horsepower setups.
